DV 270.2 MARINE WAREWASHER

This universal warewasher offers an enormous pass through height of 650mm and can handle all of the bulky washware in your galley.

This versatile warewasher has no problem coping with pots, pans, kitchen utensils, containers of all sizes, and any other tough-to-clean ware. The DV 270.2 marine warewasher offers dynamic, high-performance pumps, oscillating upper and lower stainless steel wash arms, plus a functional design and robust construction. Combined with optional loading and unloading tables, the insulated double-walled wash tank creates an ergonomically appropriate workplace.  All of these features and benefits blend together to lead to fast and efficient dishwashing in your cruise ship scullery.

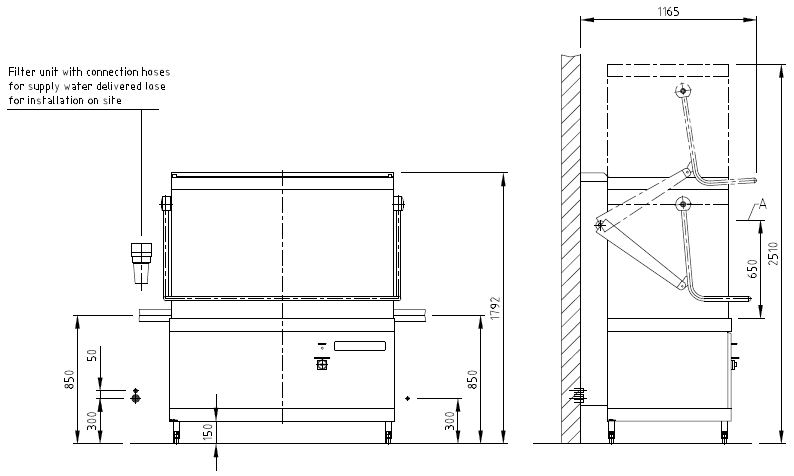

MEASUREMENTS

no product key data found

Machine also available as steam heated execution.

Rack dimension 1310 x 690 mm
Passing height650 mm
Dimensions (W x Hmin x D)1490 (1600) x 1792 x 995 (1100) mm (mit Haubenbüge mm
Programme cycle240 / 360 / 480 s
Rack capacity/h (theoretical)15 / 10 / 7 racks/h
Pump motor2,20 kW / 3,90 kW
Tank fillingFüllung: 100,0 l / 26,42 U.S.gal l
Rinse water volume9,6 Liter/Spülgang / 2,54 U.S. liters/cycle
Total connected load4,9 kW
Tank heating A
Protection class of the machineIP X5

The DV 270.2 marine warewasher works fast, confidently tackling the kinds of jobs that normal dishwashers struggle with. That means everything runs more smoothly in the galley wash-up area. The built-in booster heater with power rinse pump guarantees constant final rinse pressure and temperature for consistent, outstanding results. Meanwhile the soft start wash pumps protect fragile glassware from breaking or chipping. Sliding tables keep idle time to a minimum, while your scullery staff work under excellent ergonomic conditions and take more pleasure in their work. A marine warewasher designed for challenging environments on ferries and offshore locations.

MEASUREMENTS

no product key data found

Machine also available as steam heated execution.

Rack dimension 1310 x 690 mm
Passing height650 mm
Dimensions (W x Hmin x D)1490 (1600) x 1792 x 995 (1100) mm (mit Haubenbüge mm
Programme cycle120 / 240 / 480 s
Rack capacity/h (theoretical)30 / 15 / 7 racks/h
Pump motor2,20 kW / 3,90 kW
Tank filling100,0 l
Rinse water volume9,0 Lite liters/cycle
Total connected load22,9 kW
Tank heating9,00 kW / 11,30 A
Protection class of the machineIP X5

* If the machine is connected to a cold water supply and/or if racks are inserted in quick succession, the duration of the wash cycles may be increased to achieve hygienic final rinse temperatures.
Product lines and configurations may vary from one country to the next due to statutory requirements or other reasons. Please check with us. We will be happy to find a solution that meets your specific requirements.

Date: 03.2017. Technical modifications reserved.

Waschpumpen mit Schongang
Wash pumps with a delicate touch

Our machines are gentle, even on long-stemmed glasses and the like, all thanks to the soft start on the wash pumps.
