MARINE POT AND PAN WASHERS

This high capacity pot and pan washer for larger washware such as pots, pans, trays, containers and more withstands the toughest jobs in the scullery.

Wave water

The wheeled stainless steel baskets of this high volume marine pot and pan washer has clearances of 1280 x 670mm and holds up to 11 sheet pans per cycle. With an optional additional insert a full capacity of 22 sheet pans per cycle can be achieved. The MEIKO Auto Safe temperature control system guarantees 82°C sanitizing final rinse temperature, regardless of incoming water temperature for perfectly clean dishes. The Active Plus filtration system removes food soil, improves washing efficiency and saves detergent while easing cleaning all of your bulky washware. Protect your fragile glassware from chipping and breaking with MEIKO'S Soft Start System.

Machine also available as steam heated execution.

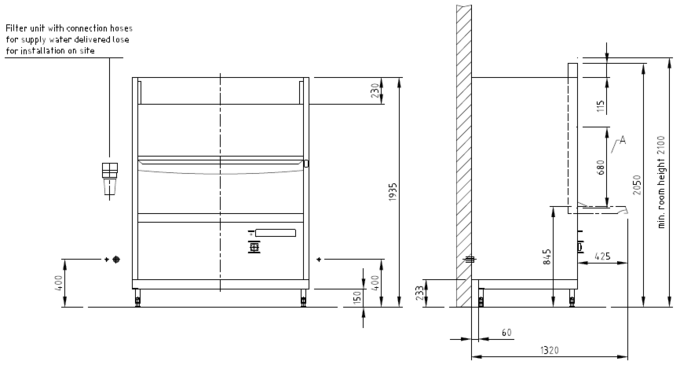

Measurements
Rack dimension 1310 x 700 mm
Entry height 680 mm
Dimensions (W x Hmin x D)1490 x 1935 x 895 mm
Programme cycle120 / 240 / 480 s
Rack capacity/h (theoretical)30 / 15 / 7 racks/h
Tank filling100,0 l
Rinse water volume9,0 Lite liters/cycle
Total connected load22,9 kW
Tank heating9,00 kW / 11,30 A
Pump motor2,20 kW / 3,90 kW
Protection class of the machineIP X5

* If the machine is connected to a cold water supply and/or if racks are inserted in quick succession, the duration of the wash cycles may be increased to achieve hygienic final rinse temperatures.
Product lines and configurations may vary from one country to the next due to statutory requirements or other reasons. Please check with us. We will be happy to find a solution that meets your specific requirements.

Date: 03.2017. Technical modifications reserved

fine filtration system - AktivPlus
Cost-cutting filter system for dishwashing equipment

MEIKO's cost-cutting filter system

M-iQ self-cleaning
Self-cleaning commercial dishwashing system

After the warewashing process, the M-iQ cleans itself with the tank water already inside, greatly reducing operating costs.
