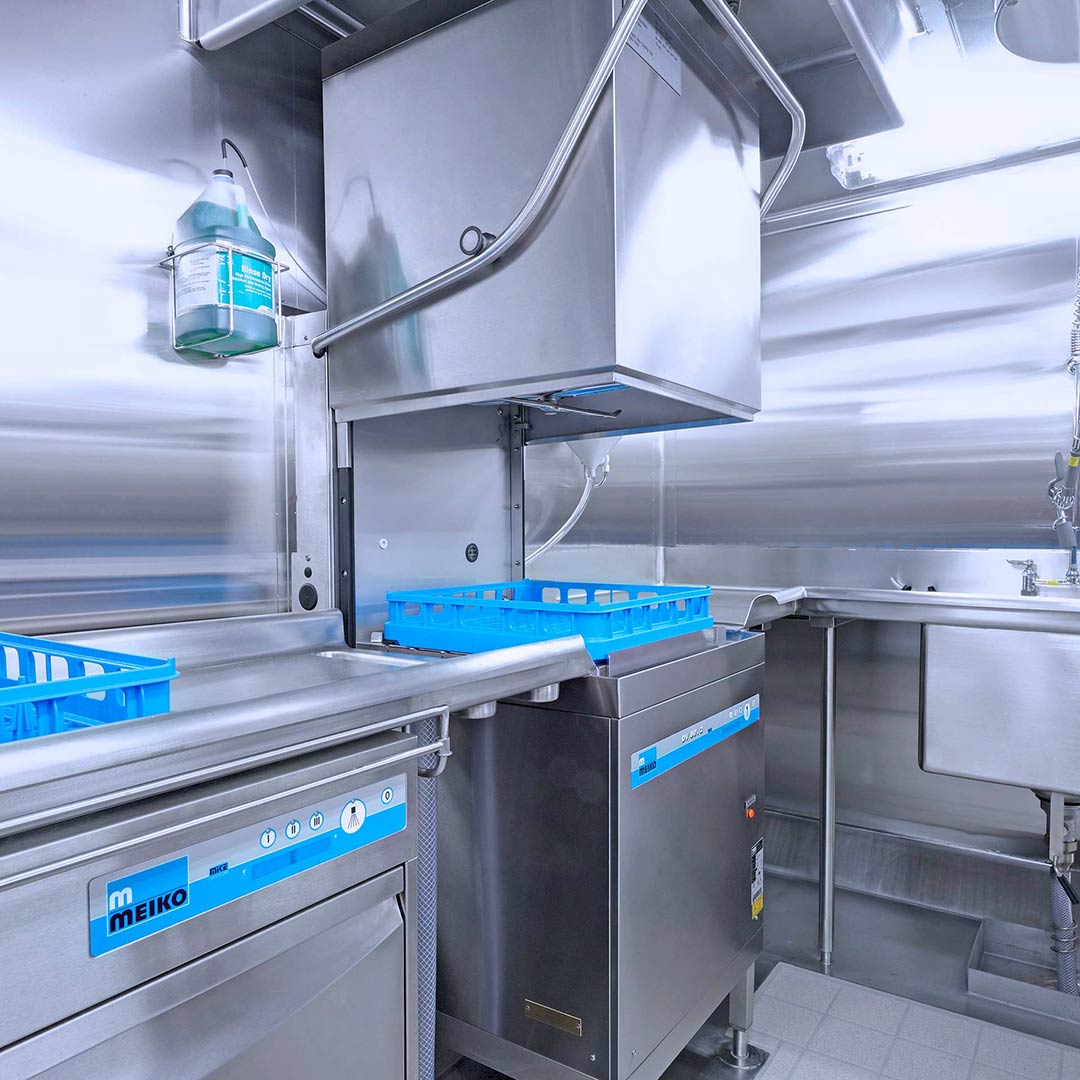

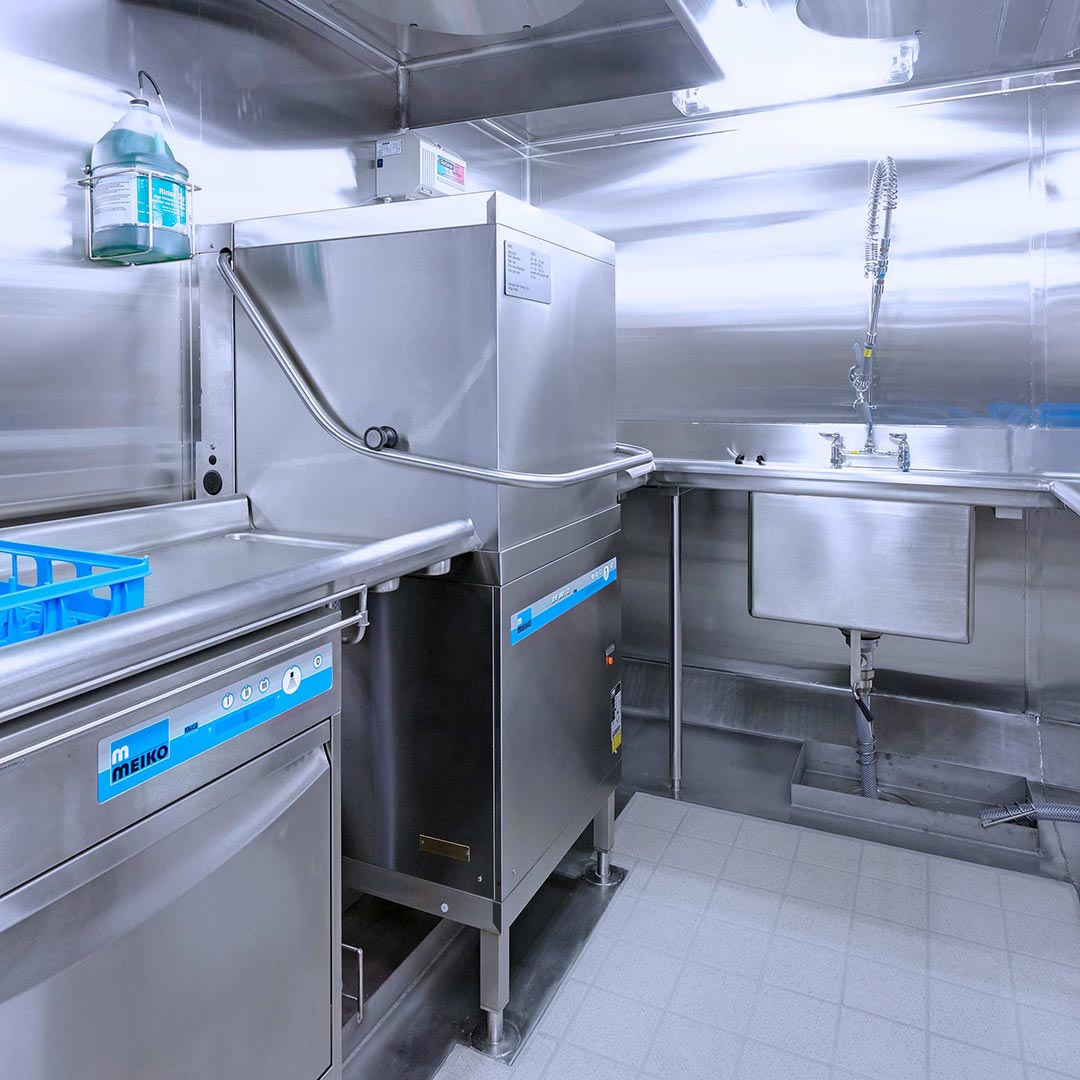

DV 80.2 MARINE PASS-THROUGH DISHWASHER

A reliable and well thought out pass-through door-type dishwasher combines a smooth and comfortable method of operation for all types of dishes, cups, cutlery, and a host of other ware items. Whether the requirement is for a pass-through or for a space saving corner-model, the flexible construction technique of the MEIKO DV-series enables virtually unlimited installation possibilities.

Die saubere Lösung

Keep your galley quieter and cooler with this pass-through dishwasher for offshore and ferries! Our DV 80.2 marine dishwasher comes with double-wall insulation for first-class sound and heat insulation. Your galley staff will love its smooth interior walls which are easy to clean along with the assisted-cleaning program following draining the dishwasher. Faster loading time and improved ventilation as well as the advanced standard features such as fully electronic controls, built-in booster heater and drain pump make this the optimal pass-through dishwasher for offshore and ferries.

Measurements
Dimension DV-Series
Rack dimension 500 x 500 mm bis 540 x 500 mm
Passing height440 mm
Dimensions (W x Hmin x D)635 ( 687) x 1520 x 750 (850) mm (mit Haubenbüge mm
Programme cycle60 / 90 / 210 s
Rack capacity/h (theoretical)60 / 40 / 17 racks/h
Pump motor0,75 kW / 2,00 kW
Tank filling22,0 l
Rinse water volume2,6 Lite liters/cycle
Total connected load14,1 kW
Boiler heating9,00 kW / 11,30 A
Tank heating4,00 kW / 8,70 A
Wash pump0,75 kW / 2,00 A
Protection class of the machineIP X5

* If the machine is connected to a cold water supply and/or if racks are inserted in quick succession, the duration of the wash cycles may be increased to achieve hygienic final rinse temperatures.
Product lines and configurations may vary from one country to the next due to statutory requirements or other reasons. Please check with us. We will be happy to find a solution that meets your specific requirements.
Machine also available as Low power unit with a maximum connection load of 5 kW.

Date: 03.2017. Technical modifications reserved.
