Washer-disinfectors MEIKO TopLine

Servicing and technical data

ADVANTAGES

  • Patented technology to achieve the hygiene standards that patients expect

  • A steamtight system to provide the working environment that your staff deserve

  • Maximum flexibility with a freely selectable A0 value (60, 600, 3,000) and multifunctional holder design for different care utensils

  • Safe and hygienic with drying and cooling using filtered air and system disinfection of all water lines

  • The certification in accordance with the current EU directive MDR (EU) 2017/745 and appliance test in accordance with EN ISO 15883-1, -3 and -5 ensures safe medical devices.

These are
7
TECHNOLOGIES

what make the MEIKO TopLine so safe and effective: a wash system with telescopic rotary nozzle (PowerClean), dual-sensor temperature monitoring (ThermoControl), drying and cooling using filtered air (Dry&Cool), system disinfection of all water lines (T.A.D.), steam prevention (SteamStop), suction lance coding (ChemCode), and a dosing system for detergent and rinse aid (CaStop)

MODELS

Individual appliances

  • Wall-mounted model - makes floor cleaning easy

  • Floor-standing model - quick to install

  • Flush wall-mounted model - to keep journeys short

  • Cabinet model - makes more work surface space available

We have the right solution for you

WALL-MOUNTED UNIT

MEIKO TopLine 10
Width500 mm
Depth450 mm
Clearance from floor200 mm
Height1630 mm
WALL-MOUNTED UNIT

MEIKO TopLine 10 A
FLOOR-STANDING UNIT

MEIKO TopLine 20
Width500 mm
Depth450 mm
Height1730 mm
Cold waterR1/2"
FLOOR-STANDING UNIT

MEIKO TopLine 20 A
INTEGRATED MODEL

MEIKO TopLine 30
Width650 mm
Depth450 mm
Height2210 mm
Cold waterR1/2"
INTEGRATED MODEL

MEIKO TopLine 30 WC
Width650 mm
Depth450 mm
Height2210 mm
Cold waterR 1/2"
CABINET MODEL

MEIKO TopLine 40
Width900 mm
Depth600 mm
Height900 mm
Cold waterR 1/2"
CABINET MODEL

MEIKO TopLine 40 B
COMBINED CARE UNITS

MEIKO TopLine SAN 20 W

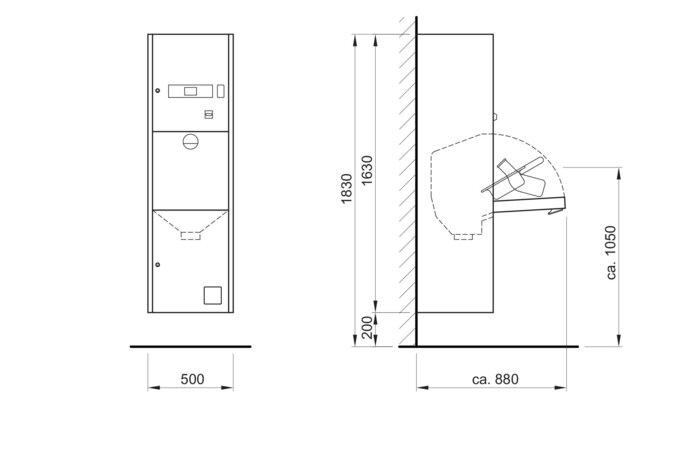

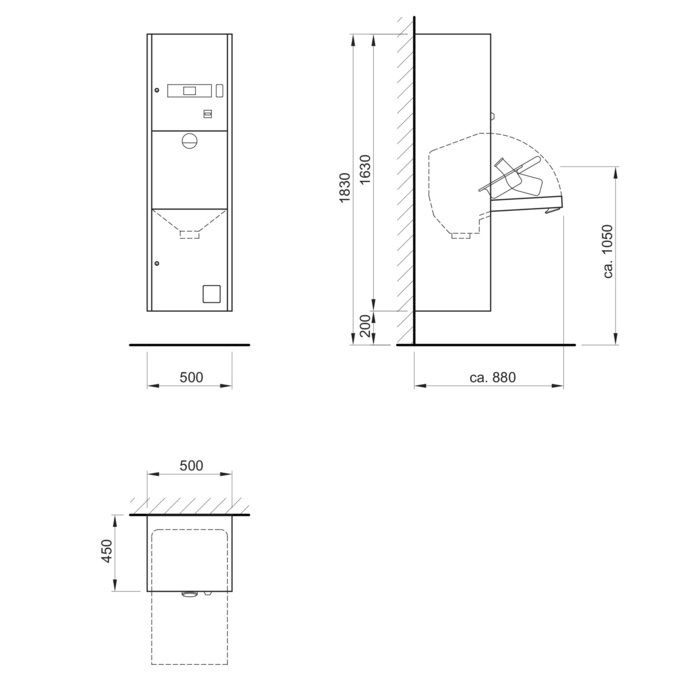

MEIKO TopLine 10

This washer-disinfector boasts compact dimensions (500 mm x 1,630 mm) and is mounted on the wall, giving you floor clearance – for even better hygiene in the area surrounding the appliance. The area can be cleaned easily, with no tricky corners. It's so convenient with nothing in the way!

Measurements
TopLine10 of MEIKO
Width500 mm
Depth450 mm
Clearance from floor200 mm
Height1630 mm
Cold waterR1/2"
Hot water 45-60 °CR1/2"
Pressure> 1
Flow> 18
DrainDN 100
Electrical connection (Standard)400V, 3N PE, 50Hz, 4,6kW
Electrical connection (Alternative)230 V, 1N PE, 50 Hz, 2,8kW
Emission sound pressure level at the workplace (LpA)50

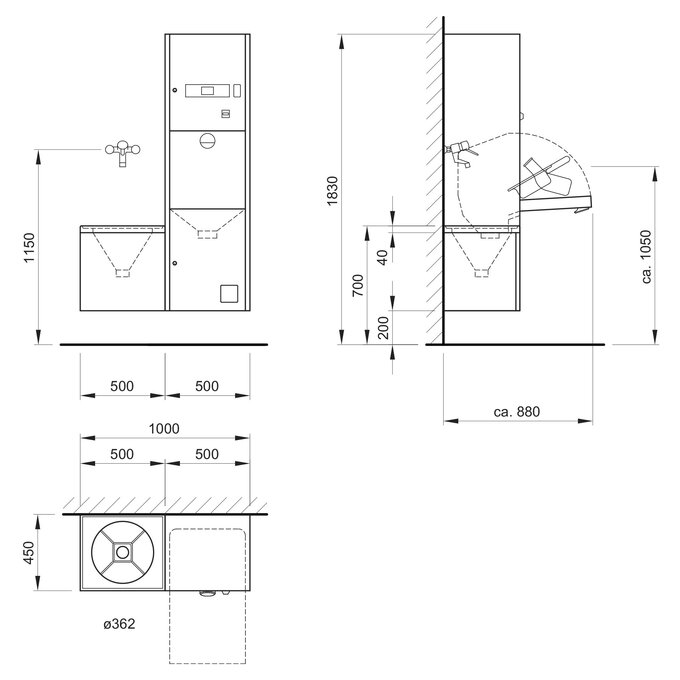

MEIKO TopLine 10 A

This care unit combines a washer-disinfector and slop sink unit for wall mounting. It measures just 1.0 m in width, making it a space-saving installation which can easily slot in with the existing equipment in your utility room.

Measurements
TopLine 10A for hospitals

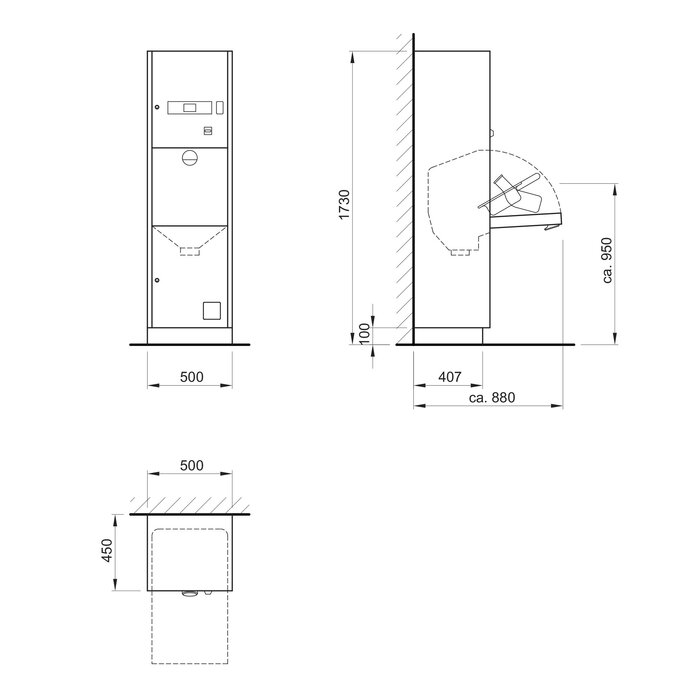

MEIKO TopLine 20

This washer-disinfector is also amazingly practical due to the speed of installation, using a plinth for floor mounting. Convenient working height and carefully calculated dimensions (500 mm x 1,730 mm) make for outstanding ergonomic credentials and hygiene safety.

Measurements

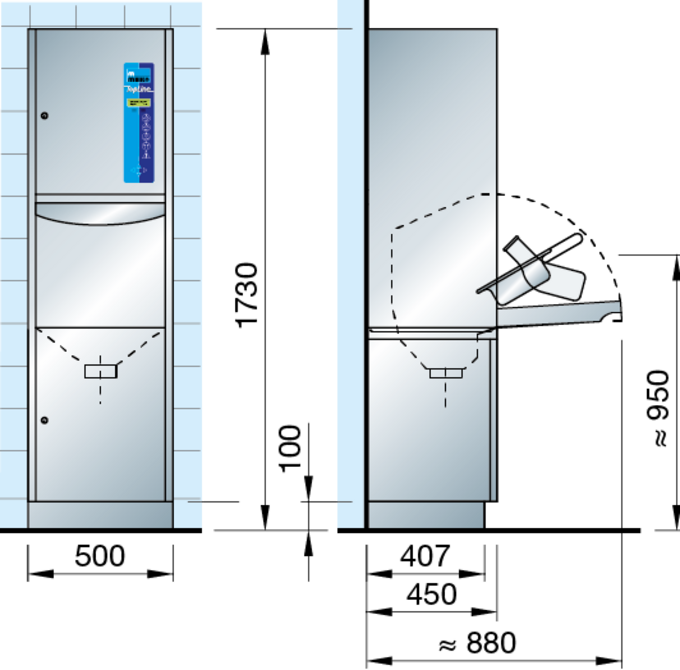

Measurements TopLine 20
Width500 mm
Depth450 mm
Height1730 mm
Cold waterR1/2"
Hot water 45-60 °CR1/2"
Pressure> 1
Flow> 18
DrainDN 100
Electrical connection (Standard)400V, 3N PE, 50Hz, 4,6kW
Electrical connection (Alternative)230 V, 1N PE, 50Hz, 2,8kW
Emission sound pressure level at the workplace (LpA)50

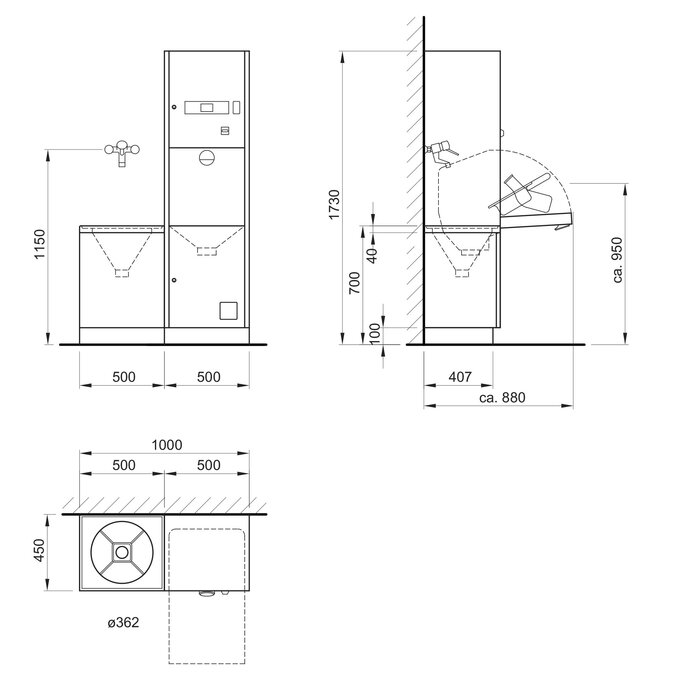

MEIKO TopLine 20 A

This washer-disinfector is a floor standing unit with slop sink unit for quick installation and flawless bedpan treatment. With a slop sink unit with no flushing rim built in, the appliance meets all possible hygiene, ergonomic and technical requirements.

Measurements

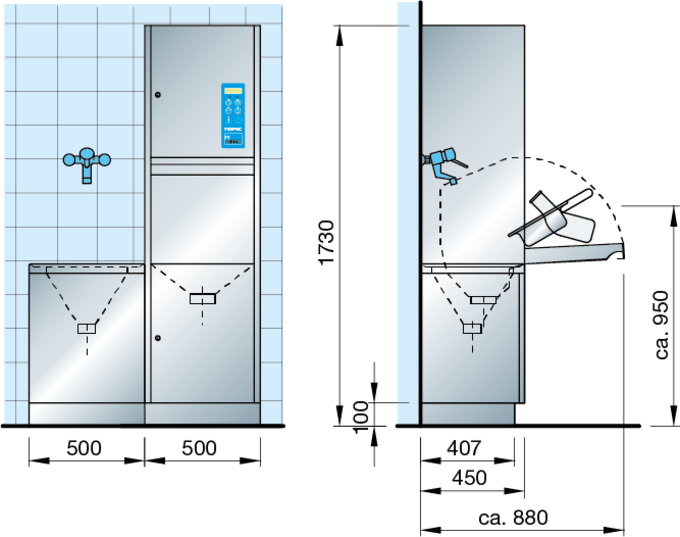

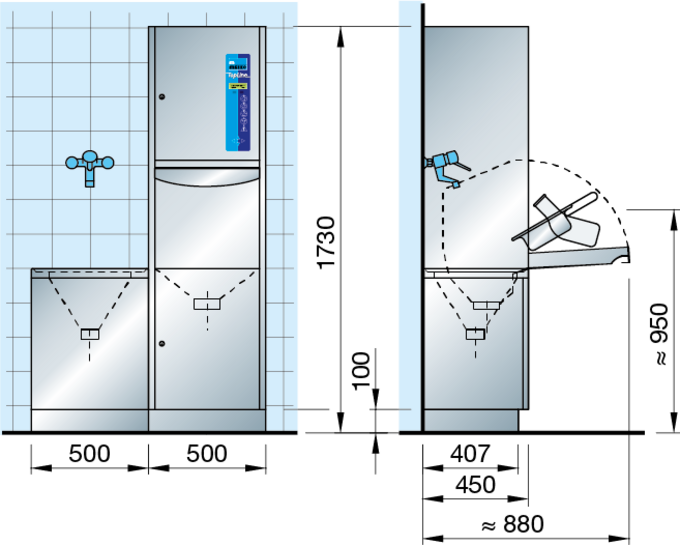

Measurements TopLine 20 spout

For further product information, please contact your sales partner.

MEIKO TopLine 30

This washer-disinfector can be integrated into the wall to save space, offering a great way to equip patients' bedrooms. This washer-disinfector is especially beneficial for intensive care units and isolation wards. It eliminates the need to carry contaminated care utensils along the corridors and keeps each care utensil assigned to one particular patient.

Measurements
cleaning of bedpans with TopLine 30
Width650 mm
Depth450 mm
Height2210 mm
Cold waterR1/2"
Hot water 45-60 °CR1/2"
Pressure> 1
Flow> 18
DrainDN 100
Electrical connection (Standard)400 V, 3N PE, 50 Hz, 4,6 kW
Electrical connection (Alternative)230 V, 1N PE, 50 Hz. 2,8 kW
Emission sound pressure level at the workplace (LpA)50
MEIKO TopLine 30 WC

The MEIKO TopLine 30 WC is a wall-integrated washer-disinfector for patients' bedrooms or ensuite bathrooms with an additional central connection point for all standard commercial types of flush toilet. The ideal choice for isolation rooms, intensive care units or anywhere else, where short journeys from the patient to the washer-disinfector are key.

Measurements
TopLine WC-combination
Width650 mm
Depth450 mm
Height2210 mm
Cold waterR 1/2"
Hot water 45-60 °CR 1/2"
Pressure> 1
Flow> 18
DrainDN 100
Electrical connection (Standard)400 V, 3N PE, 50 Hz, 4,6 kW
Electrical connection (Alternative)230 V, 1N PE, 50 Hz, 2,8 kW
Emission sound pressure level at the workplace (LpA)50

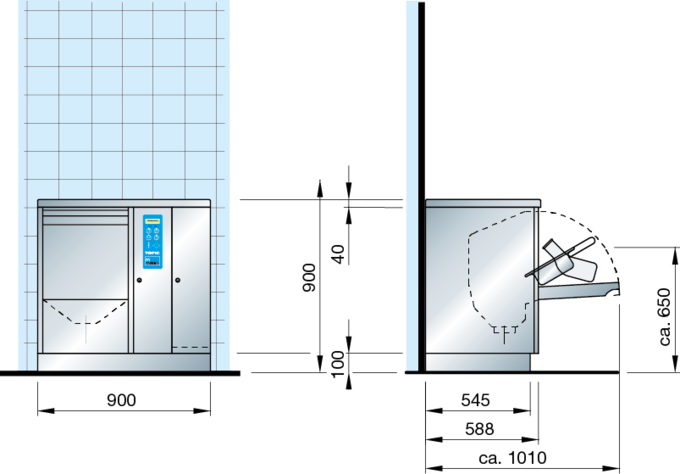

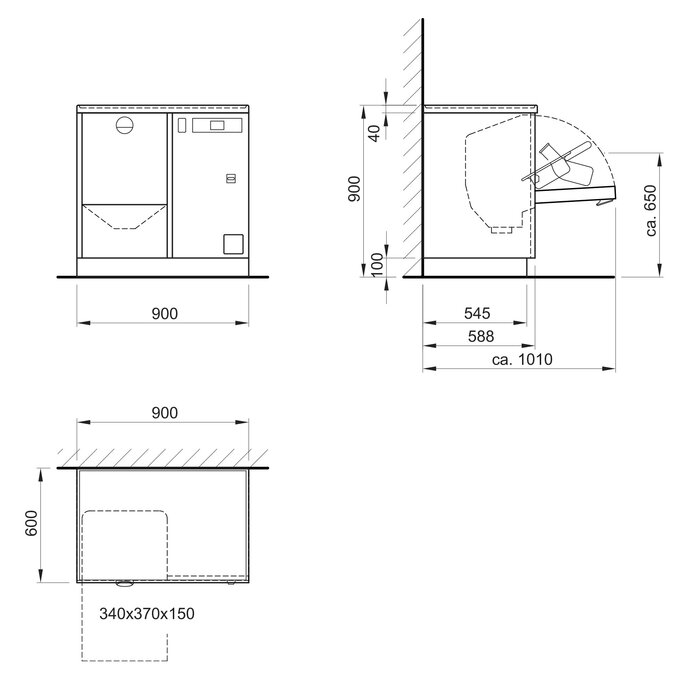

MEIKO TopLine 40

This washer-disinfector fits underneath the worktop. It measures 900 mm x 900 mm, making it a superbly compact solution for your utility room if you need to find additional work surfaces. All with no compromise on hygiene or safety.

Measurements

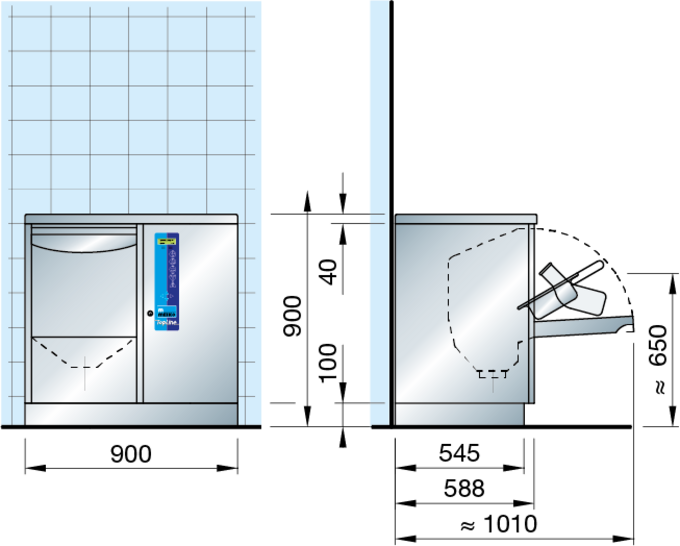

Measurements TopLine 40
Width900 mm
Depth600 mm
Height900 mm
Cold waterR 1/2"
Hot water 45-60 °CR 1/2"
Pressure> 1
Flow> 18
DrainDN 100
Electrical connection (Standard)400 V, 3N PE, 50 Hz, 4,6 kW
Electrical connection (Alternative)230 V, 1N PE, 50 Hz. 2,8 kW
Emission sound pressure level at the workplace (LpA)50

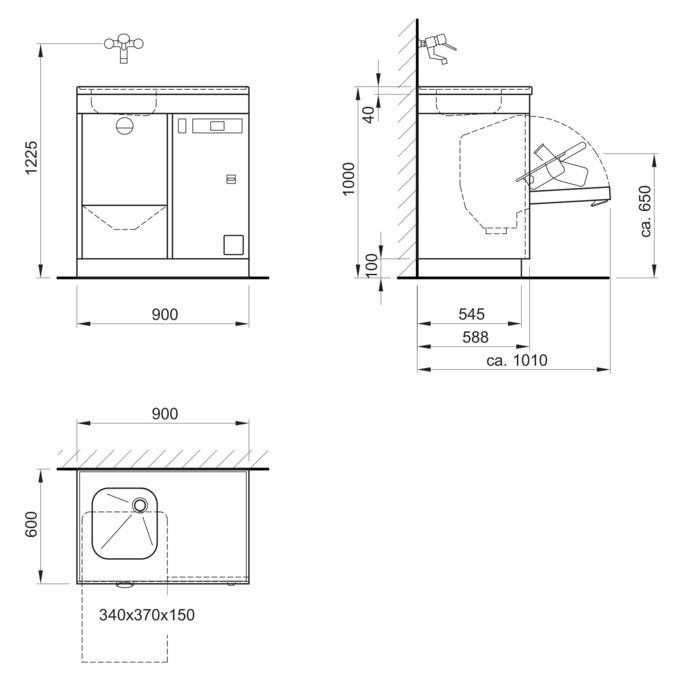

MEIKO TopLine 40 B

The TopLine 40 cabinet model washer-disinfector combines with a hand wash basin in a compact footprint, creating more space to get things done. This compact all-in-one model puts the work surface and hand wash basin at an ergonomically ideal height, making work easy.

Measurements

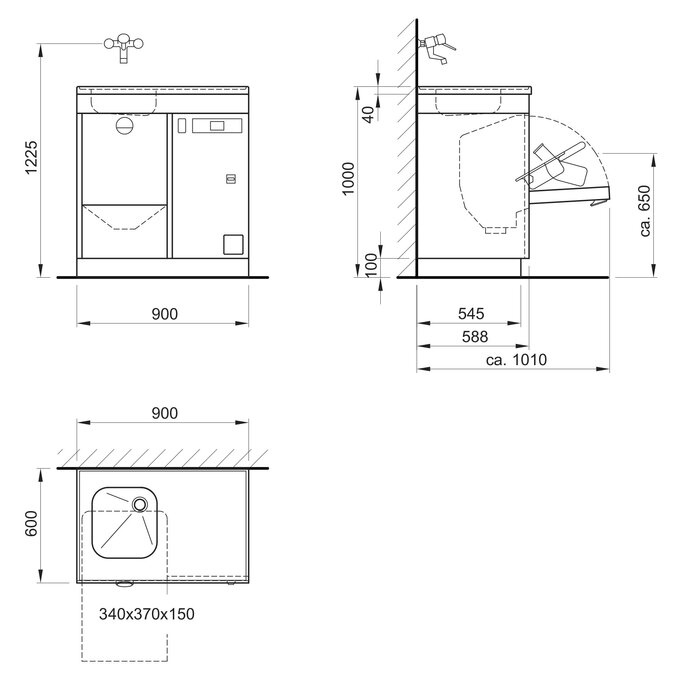

Cleaning and disinfection TopLine 40B

For further product information, please contact your sales partner.

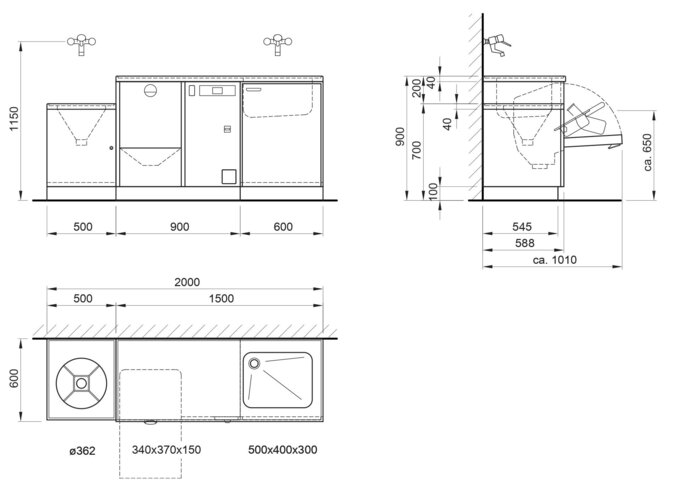

MEIKO TopLine SAN 20 W

A large wash basin (500 x 400 x 300 mm) is combined with a slop sink unit, a base cabinet and our washer-disinfector. Everything fits underneath a spacious work surface. Functional and practical. With everything neatly contained under the counter, there's plenty of room left for shelving to store bedpans and urine bottles.

Measurements
Bedpan washer SAN20W TopLine40

For further product information, please contact your sales partner.

MODELS

Combined care units

MEIKO combined care units with floor-standing unit or cabinet model are available in several versions to suit the conditions in the room and customer requirements. After all, it takes more than a washer-disinfector to make a functional utility room. You will also need sufficient work surfaces, storage spaces and wash basins to ensure that processes can run optimally.

COMBINED CARE UNITS

MEIKO TopLine SAN 14
COMBINED CARE UNITS

MEIKO TopLine SAN 14 B
COMBINED CARE UNITS

MEIKO TopLine SAN 19 B
COMBINED CARE UNITS

MEIKO TopLine SAN 20 BW
COMBINED CARE UNITS

MEIKO TopLine SAN 29 BW
COMBINED CARE UNITS

MEIKO TopLine SAN 24 W

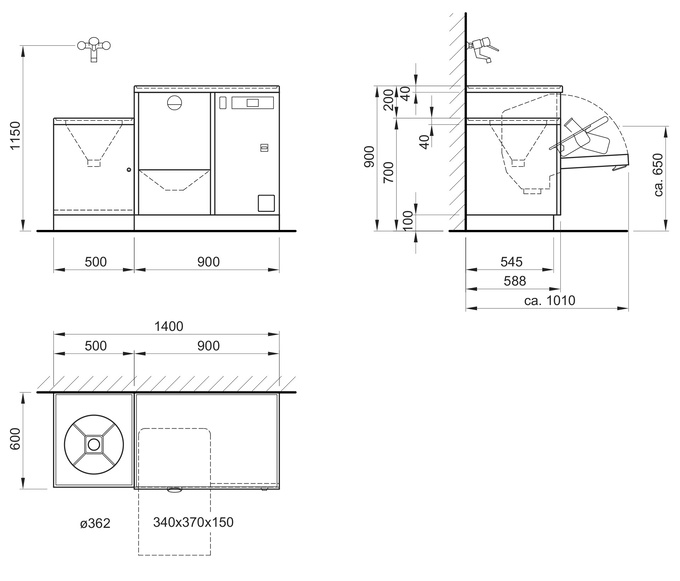

MEIKO TopLine SAN 14

This compact option is the ideal combined care unit if space is tight: combine the SAN 14 with a MEIKO TopLine 40, for example, to create a clever solution with a slop sink unit, cabinet washer-disinfector, and useful worktop. That gives you plenty of room to get the job done, even in small utility rooms.

Measurements

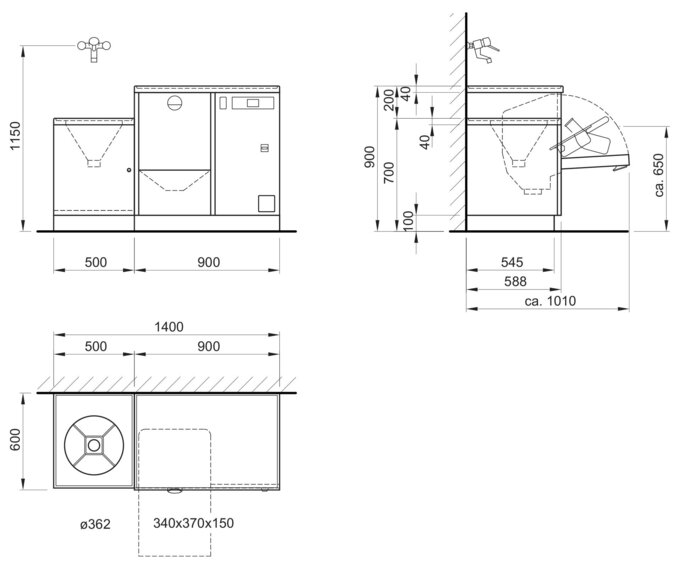

Measurements TopLine 40 SAN14

For further product information, please contact your sales partner.

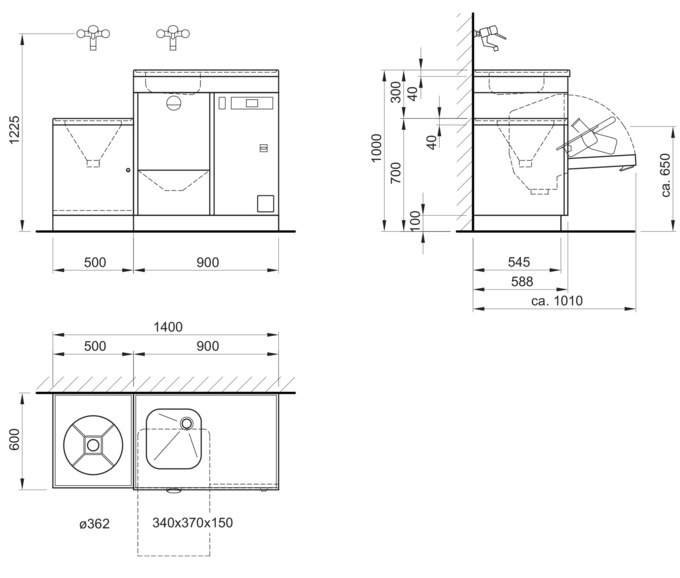

MEIKO TopLine SAN 14 B

This combined care unit brings together a washer-disinfector with a hand wash basin and a slop sink unit to create a cutting-edge base station for hygiene – ideal for meeting the versatile needs of hospital or care-home care. Plus, with a total width of 1.40 m, it is space saving, creating plenty of room for additional modules mounted on the wall.

Measurements
Measurements TopLine 40 SAN14

For further product information, please contact your sales partner.

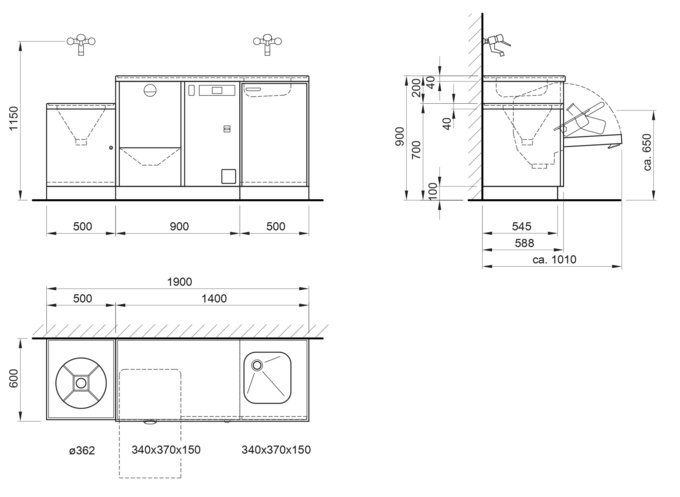

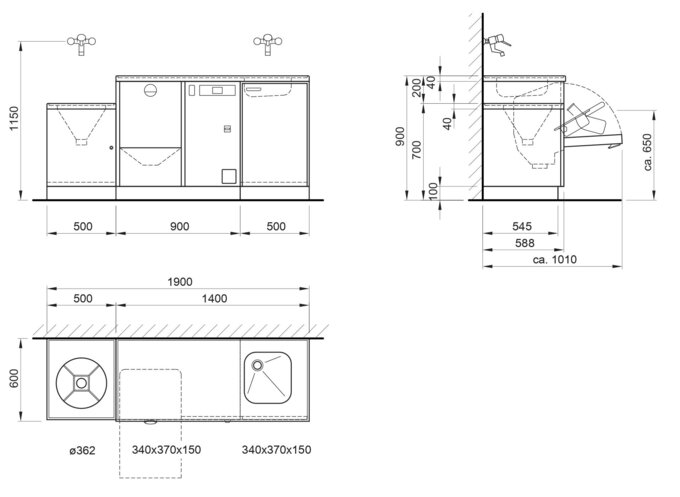

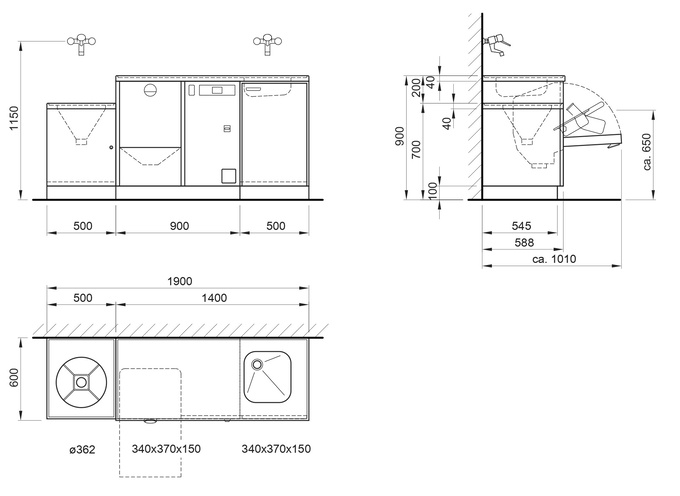

MEIKO TopLine SAN 19 B

You will love this combined care unit once you experience the extra space in your utility room: it is a clever combination of washer-disinfector, slop sink unit, hand wash basin with base cabinet and ample work surface. Get the full works for diverse applications in a single 1.90-metre-long package.

Measurements
Measurements TopLine40 SAN 19 B

For further product information, please contact your sales partner.

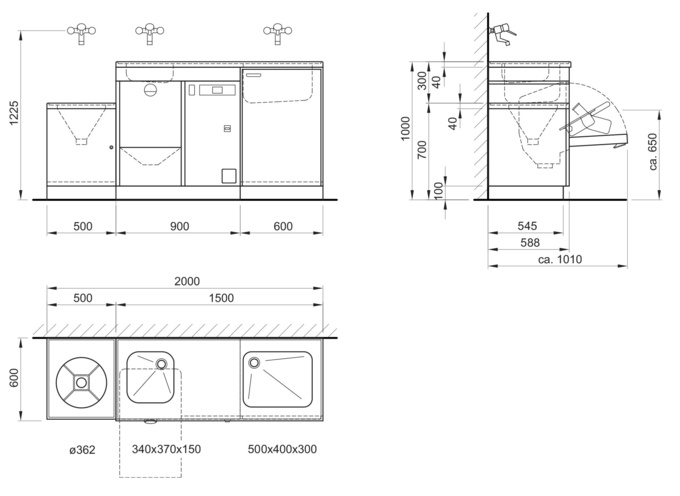

MEIKO TopLine SAN 20 BW

This combined care unit includes a washer-disinfector, slop sink unit, large wash basin, base cabinet (600 x 600 x 860 mm) and work surface with an additional hand wash basin. Large dimensions open up all kinds of possibilities in the utility room. For excellent hygiene safety and outstanding ergonomics, creating great working conditions in the care environment.

Measurements
Bedpan washer appliance TopLine40 SAN

For further product information, please contact your sales partner.

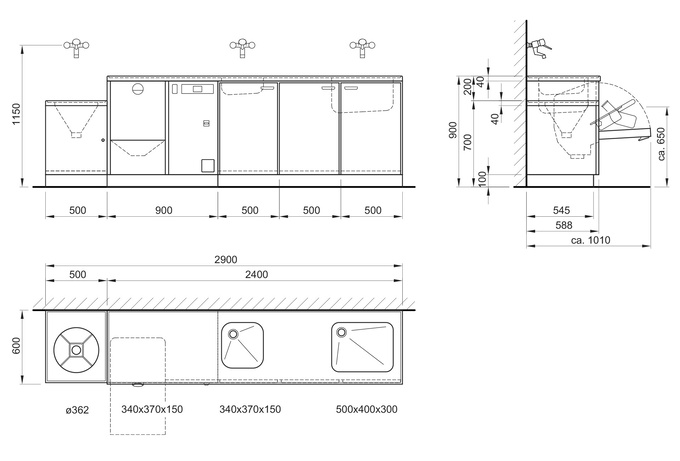

MEIKO TopLine SAN 29 BW

This combined care unit features a washer-disinfector built into a multifunctional utility room concept with a slop sink unit, hand wash basin, an additional large wash basin and a base cabinet with 3 hinged doors (1,500 x 600 x 760 mm). It provides ample work surface space and generous storage in the utility room.

Measurements
Fecel washer TopLine SAN29BW

For further product information, please contact your sales partner.

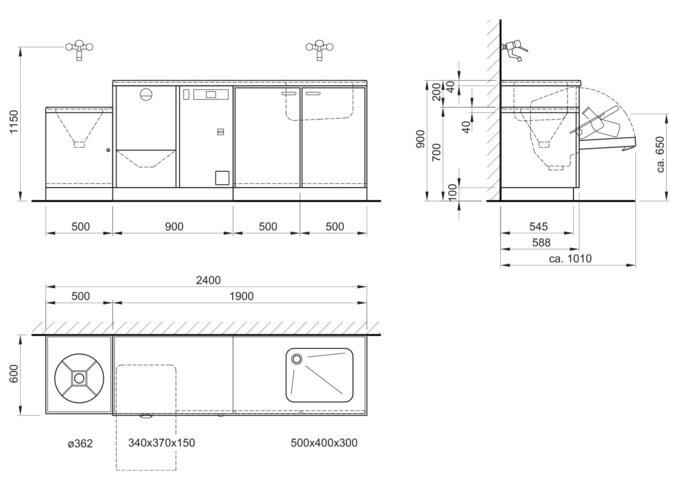

MEIKO TopLine SAN 24 W

This is a combined care unit with jumbo everything: jumbo wash basin, slop sink unit, hand wash basin and large base cabinet with two hinged doors (1,000 x 600 x 760 mm) along with a cutting-edge washer-disinfector.

Measurements
Bedpan washer appliance TopLine 40 SAN24BW

For further product information, please contact your sales partner.

CHEMICALS

Doyen RS120 5l MEIKO

DOYEN RS 120

Los restos de pomadas son especialmente resistentes, pero deben ser eliminados de los utensilios sanitarios de forma fiable. Nuestro detergente ácido Doyen RS 120 ha sido desarrollado para este caso. Este detergente elimina también los restos de pomadas de sus cuñas, consiguiendo así una limpieza y una higiene sin paliativos.

Doyen RS120 5l MEIKO

DOYEN RS 120

Los restos de pomadas son especialmente resistentes, pero deben ser eliminados de los utensilios sanitarios de forma fiable. Nuestro detergente ácido Doyen RS 120 ha sido desarrollado para este caso. Este detergente elimina también los restos de pomadas de sus cuñas, consiguiendo así una limpieza y una higiene sin paliativos.

Doyen RS120 5l MEIKO

DOYEN RS 120

Los restos de pomadas son especialmente resistentes, pero deben ser eliminados de los utensilios sanitarios de forma fiable. Nuestro detergente ácido Doyen RS 120 ha sido desarrollado para este caso. Este detergente elimina también los restos de pomadas de sus cuñas, consiguiendo así una limpieza y una higiene sin paliativos.

Chemical Doyen R100 5l

DOYEN R 100

El Doyen R 100 es un detergente especialmente eficaz para utensilios sanitarios. Este detergente es cuidadoso tanto con el material como con el medio ambiente. Su fórmula ligeramente alcalina ha sido desarrollada para el uso universal, para garantizar unos utensilios sanitarios higiénicamente impecables.

Chemical Doyen R100 5l

DOYEN R 100

El Doyen R 100 es un detergente especialmente eficaz para utensilios sanitarios. Este detergente es cuidadoso tanto con el material como con el medio ambiente. Su fórmula ligeramente alcalina ha sido desarrollada para el uso universal, para garantizar unos utensilios sanitarios higiénicamente impecables.

Chemical Doyen R100 5l

DOYEN R 100

El Doyen R 100 es un detergente especialmente eficaz para utensilios sanitarios. Este detergente es cuidadoso tanto con el material como con el medio ambiente. Su fórmula ligeramente alcalina ha sido desarrollada para el uso universal, para garantizar unos utensilios sanitarios higiénicamente impecables.

Doyen Sk33E MEIKO

DOYEN SK33E

¿Trabaja con condiciones de agua exigentes, tales como un elevado grado de dureza o inoculaciones de fosfato? Entonces el Doyen SK33E ha sido hecho para usted. La combinación ideal de abrillantador y ablandador de agua impide también la calcificación del generador de vapor en caso de que el agua sea muy dura y garantiza la limpieza de los utensilios sanitarios y una higiene máxima.

Doyen Sk33E MEIKO

DOYEN SK33E

¿Trabaja con condiciones de agua exigentes, tales como un elevado grado de dureza o inoculaciones de fosfato? Entonces el Doyen SK33E ha sido hecho para usted. La combinación ideal de abrillantador y ablandador de agua impide también la calcificación del generador de vapor en caso de que el agua sea muy dura y garantiza la limpieza de los utensilios sanitarios y una higiene máxima.

Doyen Sk33E MEIKO

DOYEN SK33E

¿Trabaja con condiciones de agua exigentes, tales como un elevado grado de dureza o inoculaciones de fosfato? Entonces el Doyen SK33E ha sido hecho para usted. La combinación ideal de abrillantador y ablandador de agua impide también la calcificación del generador de vapor en caso de que el agua sea muy dura y garantiza la limpieza de los utensilios sanitarios y una higiene máxima.

Doyen SK22E apple edition

DOYEN SK22E CON AROMA A MANZANA

También aquí el producto químico es el adecuado – y a las numerosas ventajas del abrillantador y ablandador de agua Doyen SK22E se une el fresco aroma a manzana. De este modo, los olores desagradables tampoco tienen cabida en el cuarto séptico. Esto hace que la calidad del trabajo de sus empleados también aumente.

Doyen SK22E apple edition

DOYEN SK22E CON AROMA A MANZANA

También aquí el producto químico es el adecuado – y a las numerosas ventajas del abrillantador y ablandador de agua Doyen SK22E se une el fresco aroma a manzana. De este modo, los olores desagradables tampoco tienen cabida en el cuarto séptico. Esto hace que la calidad del trabajo de sus empleados también aumente.

Doyen SK22E apple edition

DOYEN SK22E CON AROMA A MANZANA

También aquí el producto químico es el adecuado – y a las numerosas ventajas del abrillantador y ablandador de agua Doyen SK22E se une el fresco aroma a manzana. De este modo, los olores desagradables tampoco tienen cabida en el cuarto séptico. Esto hace que la calidad del trabajo de sus empleados también aumente.

Doyen Sk22E MEIKO

DOYEN SK22E

Aquí se utiliza el producto químico correcto, garantizado: Doyen SK22E ha sido desarrollado especialmente para la máquina de limpieza y desinfección de MEIKO. La perfecta combinación de máquina y producto químico – para una higiene en la que poder confiar. El abrillantador ligeramente ácido dispone además de una función de ablandamiento del agua y garantiza la limpieza de los utensilios sanitarios.

Doyen Sk22E MEIKO

DOYEN SK22E

Aquí se utiliza el producto químico correcto, garantizado: Doyen SK22E ha sido desarrollado especialmente para la máquina de limpieza y desinfección de MEIKO. La perfecta combinación de máquina y producto químico – para una higiene en la que poder confiar. El abrillantador ligeramente ácido dispone además de una función de ablandamiento del agua y garantiza la limpieza de los utensilios sanitarios.

Doyen Sk22E MEIKO

DOYEN SK22E

Aquí se utiliza el producto químico correcto, garantizado: Doyen SK22E ha sido desarrollado especialmente para la máquina de limpieza y desinfección de MEIKO. La perfecta combinación de máquina y producto químico – para una higiene en la que poder confiar. El abrillantador ligeramente ácido dispone además de una función de ablandamiento del agua y garantiza la limpieza de los utensilios sanitarios.

DOYEN SK22E APPLE SCENTED

We've got chemistry: get all the benefits of Doyen SK22E rinse aid and water softener with a fresh apple scent to top it off. Leave no space for unpleasant odours in the utility room. Last but not least, it will increase the quality of the work your employees produce.

DOYEN SK22E APPLE SCENTED

We've got chemistry: get all the benefits of Doyen SK22E rinse aid and water softener with a fresh apple scent to top it off. Leave no space for unpleasant odours in the utility room. Last but not least, it will increase the quality of the work your employees produce.
