PPE pre-cleaner MEIKO TopClean D

Servicing and technical data

ADVANTAGES

  • Fast and powerful – less time-consuming, less water consumption and gentler on materials than the manual process

  • Safe – increased protection against pathogens, toxic fine dusts, and combustion residues, plus no skin contact with cleaning chemicals

  • Large and flexible – 4 complete self contained breathing apparatuses or 12 BA masks stretched on plastic heads that prevent contamination inside the mask

  • Patented – the compressed air connection prevents moisture from entering regulators

  • Economical – intelligent heat recovery reduces energy consumption and ensures a pleasant indoor climate

In just
4 TO 16
MINUTES

One cleaning cycle can pre-clean up to 12 BA masks, 4 compressed air bottles or 4 full self contained breathing apparatuses.

MODEL

Front loader

The TopClean D provides improved safety and time savings when pre-cleaning personal protective equipment. The machine replaces the tedious and risky manual process with a quick and safe one.

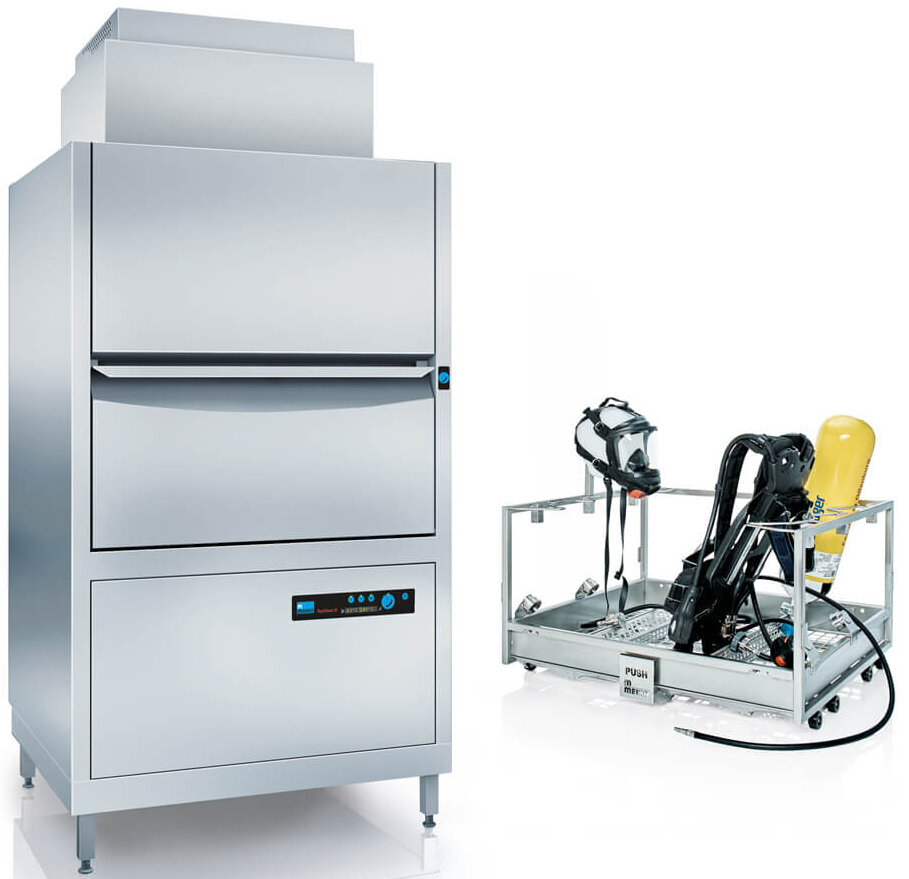

MEIKO TopClean D

The TopClean D machine professionally pre-cleans PPE, delivering excellent cleaning performance while using oscillating wash pipes to limit consumption to just 5.8 l per wash cycle. This saves valuable time for SCBA technicians and reduces their risk of contact with pathogens, toxic fine particles, and combustion residues to a minimum.

Machine PPE pre-cleaning precisely maintains all manufacturer specifications for temperature and chemical dosing.

MEIKO's heads for BA masks fully prevent any dangerous particles from being transferred from the outside to the inside of the BA masks.

Plus, no water is able enter the regulators. Our patented compressed air connection in the wash chamber prevents that.

The TopClean D pre-cleaning machine is a front loader, meaning it can be conveniently loaded with the rack extended. Another ergonomic benefit: heat recovery reduces steam emissions, helping to maintain a pleasant indoor climate in the SCBA workshop.

Measurements
Dimensions (W x Hmin x D)1030 x 2185 x 895 mm
Working height845 mm
Entry height 740 mm
Basket dimensions850 x 700 mm
Programme cycle240/480/960 s
Tank filling85 l
Tank heating6 A
Tank temperature35-55 °C
Boiler heating9 A
Boiler temperaturemax. 60 °C
Rinse water volume5,8 liters/cycle
Total connected load14,7 kW
Protection class of the machineIP X5

RACKS

PPE

The TopClean D rack for different personal protective equipment (PPE).

BA MASKS

Rack with plastic heads for up to 12 BA masks.

COMPRESSED AIR BOTTLES

Rack for up to 4 compressed air bottles.

SELF CONTAINED BREATHING APPARATUS (SCBA)

Rack for up to 4 complete self-contained breathing apparatuses.
