Pot washer MEIKO M-iClean PF-S

Servicing and technical data

ADVANTAGES

  • Huge volumetric capacity in a small footprint

  • Door folds down – for easy access and cleaning

  • Intuitive operating concept – keeps things clear

  • Premium materials – for reliability and stability

  • Integrated hold-down grid (optional) – a permanent part of the rack that keeps lightweight washware in place

  • MEIKO AirConcept heat recovery (optional) – improves the indoor climate and prevents visible steam emissions

Less than
1 M2
FLOOR SPACE

This dishwashing machine stands out for its small size and footprint, making it ideal for workspaces where every centimetre counts. The combination of small footprint and large wash chamber meets the needs of many sectors, from bakeries to food retailers to the hospitality industry.

POT WASHER

MEIKO M-iClean PF-S
Rack dimension 608 x 700 mm
Entry height 830 mm
Dimensions (W x Hmin x D)775 x 1868 (2271) x 898 mm
Programme cycle120/240/360 s
UTENSIL WASHERS

MEIKO M-iClean PF-S LH
Rack dimension 608 x 700 mm
Entry height 665 mm
Dimensions (W x Hmin x D)775 x 1868 (2271) x 898 mm
Programme cycle120/240/360 s
MEIKO M-iClean PF-S

From racks and crates to rolling pins, food-focused businesses use a huge range of washware that must be cleaned and returned to action as quickly as possible. The challenge of washing these items lies in the sheer variety of shapes, sizes, materials and residues. This echoes the diversity of the food sector itself, which includes everything from bakers' and butchers' window displays to hotel kitchens and food retailers.

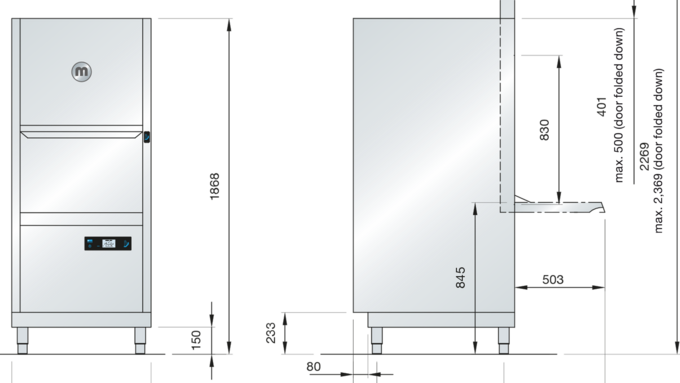

Measurements
Rack dimension 608 x 700 mm
Entry height 830 mm
Dimensions (W x Hmin x D)775 x 1868 (2271) x 898 mm
Programme cycle120/240/360 s
Rack capacity/h (theoretical)30/15/10 racks/h
Tank filling66 l
Rinse water volume4,5 liters/cycle
Total connected load8,6 / 10,6 / 11,5 / 17,6 kW
Local fuse protection16 / 20 / 25 / 32 A
Boiler heating6,00 / 8,00 / 9,00 /9,00 A
Tank heating6,00 / 6,00 / 6,00 /6,00 A
M-iClean PF-S LH

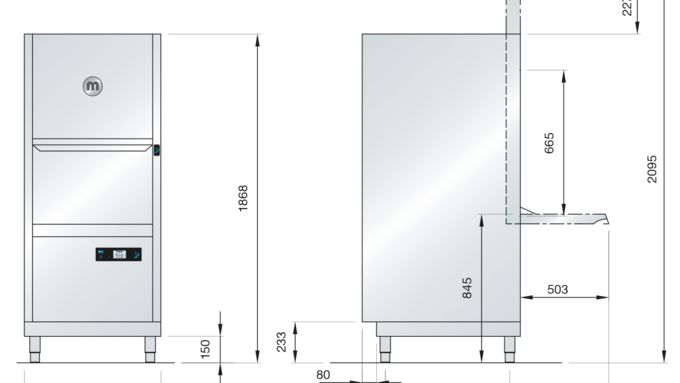

Measurements
Rack dimension 608 x 700 mm
Entry height 665 mm
Dimensions (W x Hmin x D)775 x 1868 (2271) x 898 mm
Programme cycle120/240/360 s
Rack capacity/h (theoretical)30/15/10 racks/h
Tank filling66 l
Rinse water volume4,5 liters/cycle
Total connected load8,6 / 10,6 / 11,5 / 17,6 kW
Local fuse protection16 / 20 / 25 / 32 A
Boiler heating6,00 / 8,00 / 9,00 /9,00 A
Tank heating6,00 / 6,00 / 6,00 /6,00 A

CHEMICALS

MEIKO ACTIVE R-GS 2410 GLASS

Sparkling glasses and decor with no need to polish by hand. That is what our highly concentrated rinse aid for soft water can achieve for you. Don't lose any precious time that your staff could use elsewhere – like looking after your customers.

Product data sheetSafety data sheet

MEIKO ACTIVE R-US 2000 ECO

Sustainability is a priority for MEIKO in every area, including cleaning agents. Our ECO rinse aid was developed for just that – maximum eco credentials without compromising on sparkling washing results or flawless hygiene. Both are still guaranteed. Even better: it all comes with no need to polish by hand.

Product data sheetSafety data sheet

MEIKO ACTIVE R-PM 2690 PL

Washing plastic dishes is a unique art form, especially when it comes to drying. This liquid rinse aid was developed to guarantee flawless results when washing plastic dishware. But it doesn't stop there: this versatile rinse aid is also suitable for use with other materials. For hygienic, sparkling, dry washware.

Product data sheetSafety data sheet

MEIKO ACTIVE R-GS 2410 GLASS

Sparkling glasses and decor with no need to polish by hand. That is what our highly concentrated rinse aid for soft water can achieve for you. Don't lose any precious time that your staff could use elsewhere – like looking after your customers.

Product data sheetSafety data sheet

MEIKO ACTIVE R-UH 2890

Some water types are difficult to manage and require cleaning products precisely tailored to the situation. In these cases, the acid formula of our highly concentrated rinse aid really comes into its own. That means that even when conditions are not ideal, you can be sure of hygienically clean washing results and sparkling glasses.

Product data sheetSafety data sheet

MEIKO ACTIVE R-US 2000 ECO

Sustainability is a priority for MEIKO in every area, including cleaning agents. Our ECO rinse aid was developed for just that – maximum eco credentials without compromising on sparkling washing results or flawless hygiene. Both are still guaranteed. Even better: it all comes with no need to polish by hand.

https://partnernet.meiko-global.com/download/3848/en

MEIKO ACTIVE R-PM 2690 PL

Washing plastic dishes is a unique art form, especially when it comes to drying. This liquid rinse aid was developed to guarantee flawless results when washing plastic dishware. But it doesn't stop there: this versatile rinse aid is also suitable for use with other materials. For hygienic, sparkling, dry washware.

https://partnernet.meiko-global.com/download/3846/en

MEIKO ACTIVE R-UH 2890

Some water types are difficult to manage and require cleaning products precisely tailored to the situation. In these cases, the acid formula of our highly concentrated rinse aid really comes into its own. That means that even when conditions are not ideal, you can be sure of hygienically clean washing results and sparkling glasses.

https://partnernet.meiko-global.com/download/3847/en

MEIKO ACTIVE R-US 2190

Sparkling glasses and a hygienic clean guaranteed: this rinse aid comes into its own in soft and medium water, delivering exceptional washing results. It is a highly concentrated blend of active ingredients to reduce operating costs.

https://partnernet.meiko-global.com/download/3849/en

MEIKO ACTIVE D-GS 1410 GLASS

Your glasses are the best calling card your business could have. This highly concentrated liquid detergent was developed to get the most out of your glasswasher. Your customers can always have sparkling clean glasses. And this detergent is also proven to maintain the head on your beer.

https://partnernet.meiko-global.com/download/3838/en

MEIKO ACTIVE D-US 1000 ECO

Powerful detergents really can be extremely environmentally friendly. This product is the proof: this concentrated detergent reduces environmental impact and is also highly effective on coffee, tea and starch residues.

https://partnernet.meiko-global.com/download/3842/en

MEIKO ACTIVE D-AM 1310 ALU

Choose this detergent for flawless shine and hygiene using soft to medium water. It can also be used to wash utensils made from soft metals like aluminium. Developed to be powerful, with economy and environment in mind.

https://partnernet.meiko-global.com/download/3837/en

MEIKO ACTIVE D-UH 1990 PCL

This detergent really packs a punch. It truly comes into its own when tackling especially tough dirt and staining. It even removes dark stains from tea and coffee cups, leaving them shining like new again after washing – regardless how stubborn the residues may be.*

https://partnernet.meiko-global.com/download/3840/en

MEIKO ACTIVE D-UH 1890

Hard water? No problem! This powerful alkali detergent will produce sparkling washing results even using exceptionally hard water. The key is the exceptional calcium binding capacity. That combines with highly effective cleaning agents to guarantee a hygienically clean and sparkling washing result, even removing tough dirt.*

https://partnernet.meiko-global.com/download/3839/en

MEIKO ACTIVE D-US 1190

The all-rounder: this highly concentrated and versatile detergent works in any type of water. It is a universal dish detergent and is able to tackle tough dirt and still go easy on the environment. Get hygienic, sparkling results for the minimum cost.*

https://partnernet.meiko-global.com/download/3844/en

MEIKO ACTIVE D-US 1110

First choice for medium water: our alkali dish detergent is powerful and binds calcium well, providing sparkling results. Tough dirt? No problem! And with consideration for the environment, too.*

https://partnernet.meiko-global.com/download/3843/en

MEIKO ACTIVE D-UH 1890

Hard water? No problem! This powerful alkali detergent will produce sparkling washing results even using exceptionally hard water. The key is the exceptional calcium binding capacity. That combines with highly effective cleaning agents to guarantee a hygienically clean and sparkling washing result, even removing tough dirt.*

https://partnernet.meiko-global.com/download/3839/en

MEIKO ACTIVE D-US 1190

The all-rounder: this highly concentrated and versatile detergent works in any type of water. It is a universal dish detergent and is able to tackle tough dirt and still go easy on the environment. Get hygienic, sparkling results for the minimum cost.*

https://partnernet.meiko-global.com/download/3844/en

MEIKO ACTIVE D-US 1110

First choice for medium water: our alkali dish detergent is powerful and binds calcium well, providing sparkling results. Tough dirt? No problem! And with consideration for the environment, too.*

https://partnernet.meiko-global.com/download/3843/en
